| الاسم التجاري: | SZSSTH |
| رقم الطراز: | SSTH-30 |
| الـ MOQ: | 1 pieces |
| السعر: | $55-77/pieces |
| شروط الدفع: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| القدرة على التوريد: | 5000 piece/month |

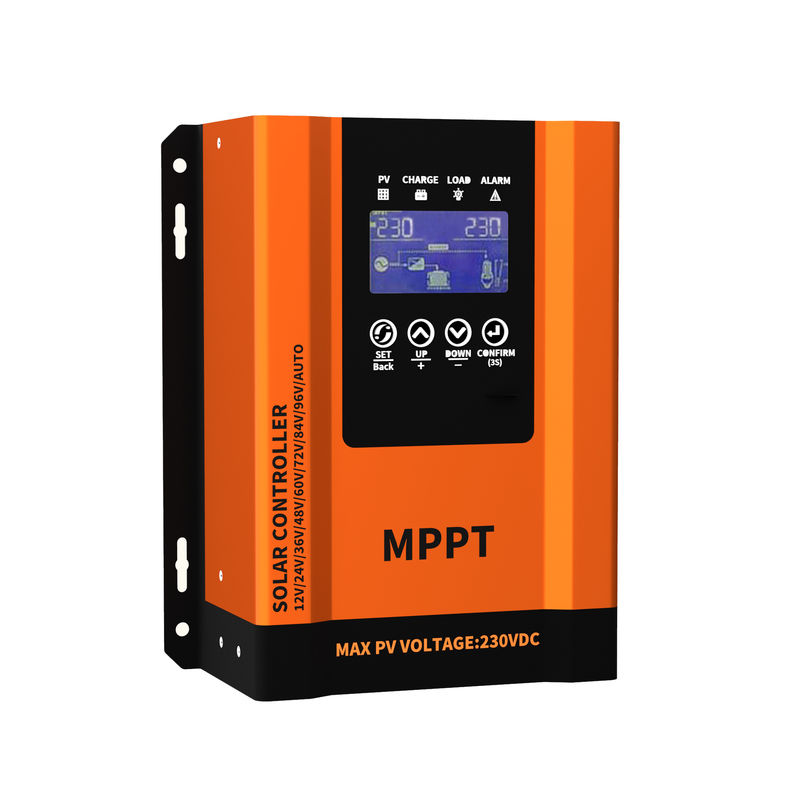

Advanced solar charge controller for off-grid 12V/24V/36V/48V battery systems with automatic voltage detection and wide compatibility.
| Attribute | Value |
|---|---|
| Type | MPPT |
| Max PV Power | Auto tracking the max power |
| Rated Current | 30/40/50/60A |
| MPPT efficiency | 97% |
| Protection level | IP 21 |
| Charge mode | MPPT automatic Max power tracking |
| Model | 30A | 40A | 50A | 60A |
|---|---|---|---|---|
| Max PV Input Power (12V-18V) | 540W | 720W | 900W | 1080W |
| Max PV Input Power (24V-36V) | 1080W | 1440W | 1800W | 2160W |
| Max PV Input Power (36V-54V) | 1620W | 2160W | 2700W | 3240W |
| Max PV Input Power (48V-72V) | 2160W | 2880W | 3600W | 4320W |
| Product Size | 202*215*100mm | 202*215*100mm | 218*265*100mm | 218*265*100mm |
| Weight | 1.9kg (Net) | 1.9kg (Net) | 2.6kg (Net) | 2.6kg (Net) |
