| الاسم التجاري: | SZSSTH |
| رقم الطراز: | UD2024AP |
| الـ MOQ: | 1 صغار |
| السعر: | $138/pieces |
| شروط الدفع: | L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram |
| القدرة على التوريد: | 100000pcs/شهر |

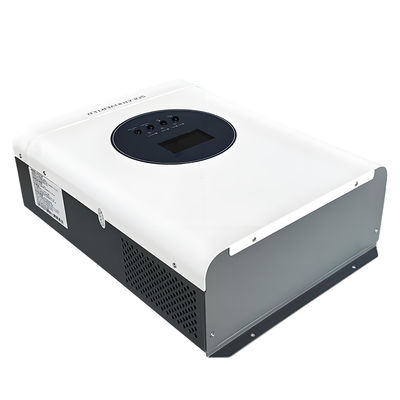

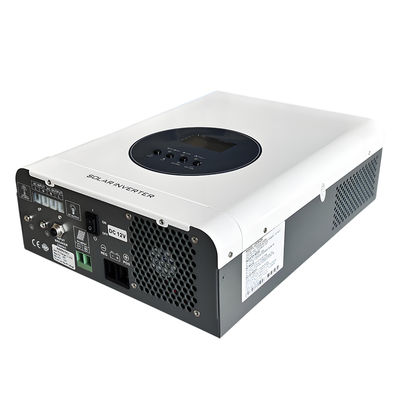

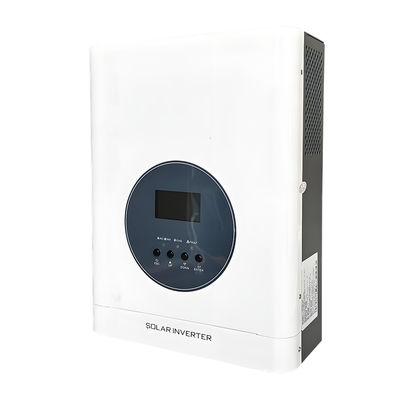

1.6KW 24V Off-Grid Solar Inverter | 80A MPPT Charger | Pure Sine Wave | Lithium Compatible
Meta Description: Power your off-grid life with this robust 1.6KW 24V Pure Sine Wave Inverter. Features a high-capacity 80A MPPT solar charger, seamless transfer switching, and supports lithium batteries. Ideal for homes, cabins, & backup power. Get a direct supplier quote.
Product Overview
Engineered for reliability and high performance, this 1.6KW 24V Off-Grid Solar Inverter is a complete hybrid power management solution. It combines a high-efficiency pure sine wave inverter, a powerful MPPT solar charge controller, and a precise AC battery charger in a single, robust unit. Designed for the core of residential and commercial off-grid solar systems, it intelligently manages power from solar panels, utility grid, and batteries to provide seamless, uninterrupted electricity for your essential loads. Its high power output and advanced features make it a superior choice for larger energy demands.
| model | UDI012AP | UDI512AP | UD1524AP | UD2024AP | UD3024AM | UO5048AM | UD6348AM | U012548AM | UD10048AM |
|---|---|---|---|---|---|---|---|---|---|
| Ac input voltage | 220VAC(standard) | 220VAC(standard) | |||||||
| Input voltage range | 154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model) 110V:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model) |
||||||||
| Input frequency | 50/60Hz±5% | 50/60Hz±5% | |||||||
| Output power | 1000VA 800W |
1500VA 1200W |
1500VA 1200W |
2000VA 1600W |
3000VA 2400W |
5000VA 4000W |
6300VA 5000W |
10000VA 8000W |
12500VA 10000W |
| AC model output Voltage | The output voltage under the mains is thesame as the input voltage | ||||||||
| Battery model output voltage | 220VAC+10%(Custom110VAC+10%) | ||||||||
| Battery model output frequency | 50HZ or 60HZ±1% | ||||||||
| Battery model output wave | Pure sine wave | ||||||||
| Battery type | External lead-acid battery,Gel battery,water battery or Lithium battery | ||||||||
| Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| Battery charging voltage | 13.7VDC | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC |
| Maximum PV array power | 12V:800W | 24V:1600W | 48V:3200W | 48V:6400W | |||||
| Solar input voltage range | 12V:PWM 15V-50VDC 24V:PWM 30V-105VDC |
24V:MPPT 30V-150VDC 48V:MPPT 60V-150VDC |
|||||||
| Maximum PV Display Open Circuit Voltage |
12V: PWM 50VDC 24V: PWM 105VDC |
24V:MPPT 150VDC 48V:MPPT 150VDC |
|||||||
| Maximum solar charging current | 60A | 120A | |||||||
| Maximum AC Charge Current | 27A | 40A | 20A | 30A | 60A | 40A | 50A | 80A | 100A |
| load peak ratio | (MAX)3:1 | ||||||||
| Protective function | Under themains:input overcurrent fuse Under inverter: overload protection,short circuit protection, low voltage protection (with battery anti-reverse connection, board). |
||||||||
| Status Display | You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage output frequency, battery voltage, load current and other parameters by turning the page keys. |
||||||||
| Voice prompt | Low batteryprotection ouzzerlona peep Low batterybuzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms. |
||||||||
| Operating temperature | 0°C~40℃ | ||||||||
| Storage temperature | -15°C~45°C | ||||||||
| Relative temperature | -10°C~90℃C no condensation | ||||||||
| Noise | <45dB | ||||||||
| size(L*W*H)mm | 465*310*135MM | 545*400*200MM | |||||||
Key Features & Technical Advantages
High-Capacity Pure Sine Wave Inverter: Delivers a continuous 1600W of clean, stable AC power (3200W surge), protecting sensitive electronics and ensuring the smooth operation of motors in refrigerators, power tools, and water pumps.
Powerful 80A MPPT Solar Charger: The integrated Maximum Power Point Tracking (MPPT) controller features an impressive 80A charging current. This maximizes energy harvest from large solar arrays, significantly reducing battery charging time and increasing overall system efficiency compared to PWM technology.
Seamless Transfer Switching (<10ms): Features a fast transfer switch that ensures uninterrupted power supply during the switch between solar, battery, and AC input sources. This is critical for preventing reboots of computers and other sensitive devices.
Wide Battery Compatibility & Management: Fully compatible with modern lithium batteries (LiFePO4), as well as traditional AGM, GEL, and flooded lead-acid batteries. Includes comprehensive battery protection against overcharging, deep discharge, overloading, and short circuits.
Dual AC Input Source (Optional): Some models support two AC inputs (e.g., grid and generator), allowing for flexible backup power configuration and automatic generator start/stop functionality.
Intelligent LCD Interface: The user-friendly LCD display provides real-time monitoring of input/output voltage, battery status, solar charge status, and fault diagnostics, enabling easy system management.
Application Scenarios
This inverter is built to handle the energy needs of larger setups:
Residential Off-Grid Homes: The perfect heart of a solar system for home, capable of running multiple appliances, lighting, and entertainment systems simultaneously in a small to medium-sized off-grid house or cabin.
Backup Power for Offices & Shops: Provides reliable emergency power for small businesses, retail shops, and home offices during grid outages, keeping operations running smoothly.
Remote Agricultural & Industrial Use: Powers water pumps, electric fences, tools, and monitoring equipment on farms, ranches, and remote construction sites.
Large RV & Marine Applications: Provides ample power for larger recreational vehicles, caravans, and boats, supporting air conditioners, microwaves, and other high-wattage appliances.
Telecom Base Stations: Provides stable and reliable power for remote telecommunications infrastructure.
